Technical Data

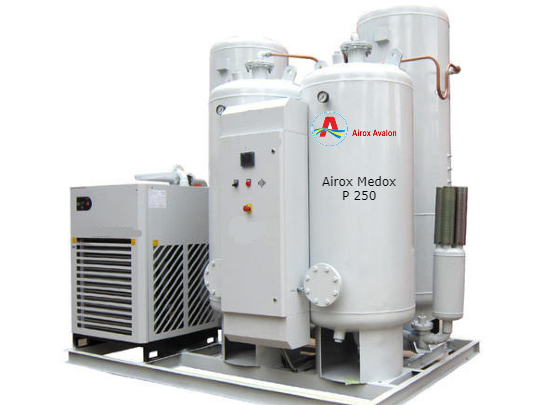

AIROX MED-OX 250

AIROX MED-OX 500

AIROX MED-OX 1000

Flow Rate ( LPM )

250

500

1000

Flow Rate ( Nm3/hr)

15

30

60

Oxygen Purity

93% +/-3% ( At Generator Outlet )

Outlet Pressure

Options of 0.2 Bar G , 1.8 Bar G , 5 Bar G & 7 Bar G Available

Booster Optional

For Cylinder Filling 200 & 350 Bar G With Boosters Available

Operating Temperature

-18°C to 49°C

-18°C to 49°C

-18°C to 49°C

Power Supply

380/460/575 VAC +/- 10%,50/60/60 Hz +/- 3%,3-Phase

Power Required

30 KVA

60 KVA

90 KVA

Power Consumption

16 KW @ 4-5 barG

38 KW @ 4-5 barG

70 KW @ 4-5 barG

Outlet Connection

25 NB

40 NB

40 NB

Skid Size L x W X H ( Mtrs)

2.5 x 4 x 3

3.5 x 4 x 3

4.5 x 4 x 3
